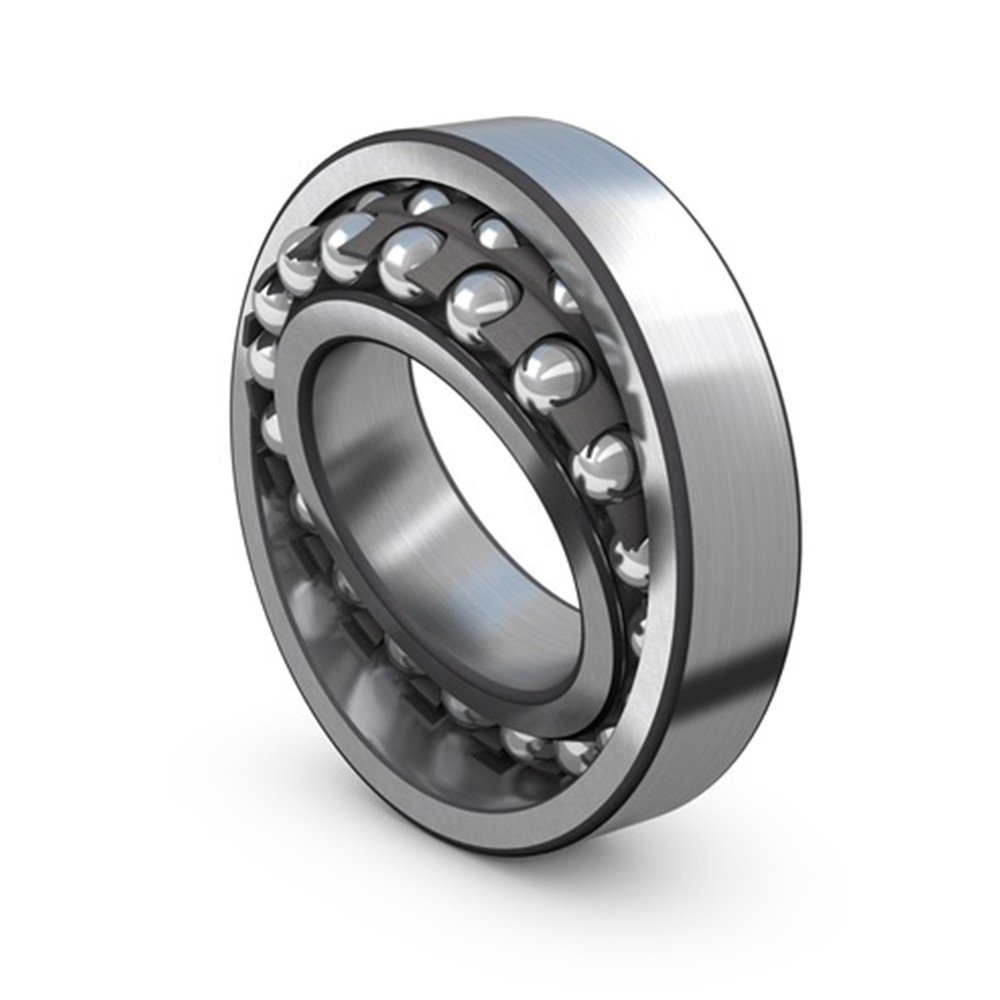

NTN 2312 Double Row Self-Aligning Ball Bearing 60mm ID 130mm OD 46mm Width - Open Type Radial Bearing for Industrial Machinery, Conveyors, and Heavy Equipment

Double row self-aligning bearings utilize an inner ring with two rows of balls in two deep raceways, and an outer ring with a single spherical raceway. In this way, the inner and outer rings can be misaligned relative to each other. The resulting effect is a comparatively large angle imposing moment loads upon the balls. The boundary dimensions of the 1200 and 1300 series are the same as the 6200 and 6300 single row deep groove bearings.NTN is one of the three largest bearing companies in the world with more than ninety years of manufacturing expertise in ball bearings.

Self-aligning bearing for applications subject to shaft deflections or misalignments between the shaft and housing

Straight bore for fitting on a conventional cylindrical shaft

Steel cage evenly spaces balls for reduced friction, vibration and noise

Open bearing for lubrication applied in place

CN (normal) radial internal clearance for applications that do not involve thermal expansion or atypical precision
